F-POS 3.65/G32 - Over 1000 instalations

POS solution for a 4x4 Sales Regime

In all cases when selling is done under difficult conditions where speed and reliability are required, where there is a high turnover of goods and a large number of customers, it is essential to have reliable cash registers at POSs, capable of working under "impossible conditions". The FILOS F-POS is a cash register programme, designed for the demanding circumstances of sales in markets, supermarkets and megamarkets. F-POS's basic characterestics are robustness, speed, and long-term, uninterrupted operation, all fundamental preconditions for operation at sites with a large number of customers per hour passing through checkout counters.

Ongoing design - breaking through the final barriers

Along with the traditional features of all POS programmes - reliability and operating speed - the market also demands modern functions to make shopping more attractive and more fun for their customers. It's not enough today merely to follow trends, one has to create them and offer them to customers.
The F-POS design is conceived as an ongoing process conditioned by current market demands and based on constant assessment of future needs. In this way, a considerable part of the functionality of F-POS-a actually lies in breaking through the final barriers of the unknown and the innovative in retail and wholesale.

Old hardware need not be a limiting factor in modern sales

Since investment in hardware is a major item in the costs of large sales chains, the features offered by F-POS are important as they provide for the possibility of work with a broad range of diverse hardware. This allows investment in new hardware to be planned for long-term, without concerns that old hardware will be an obstacle to state-of-the-art sales services at the checkouts.

A dual platform in one information system

Using F-POS 3.65 on older hardware, parallely with F-POS G32 on new hardware, uniformity of the system is achieved, independently of the type of cash register already in place within the system. The F-POS 3.65 system is a 16-bite platform which attains its best results on DOS operating systems, while the F-POS G32 32-bite platform is oriented to MS Windows operating systems. Both versions are developed parallely and can be used at the same time within the one system.

The choice of the cash register is up to you

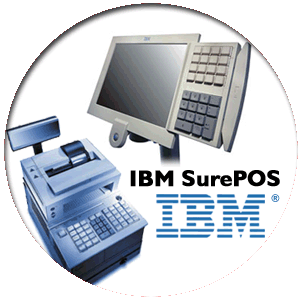

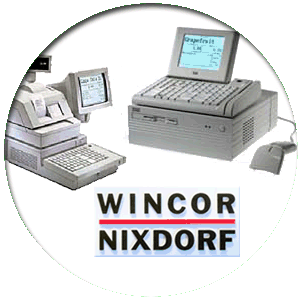

The programme is primarily designed for operation on the hardware made by the leading world producers, such as: IBM, WINCOR/NIXDORF, DELL, POSIFLEX, ICL, NCR. Operation is also supported on classic PC computers, but only with the use of high quality POS peripheries.

High-quality Bar Code Scanners for speedy operation

In order to ensure a brisk flow of merchandise through the Points-Of-Sale, it is recommended that the BAR-CODE scanners be of high quality, for example, PSC and SYMBOL. Using a 360 degree laser scanner, the speed of merchandise flow approaches the theoretical number of 3 500 items per hour

Advanced Special Sales Actions and the Loyalty System.

Today's markets are so developed that customers have to be treated with special attention, and they are attracted by well thought out and prepared Special Action sales and the advantages offered to them by Loyalty Systems. F-POS contains modules with built-in algorithms for analysis of consumer baskets in real time, so that linked sales can be defined within numerous algorithms such as:

consumer baskets at a set price;
tied sales by groups;
tied sales by defined lists of articles; and,
programmed Happy Hour sales.

Prizes can include:

set percentage discounts;
set amount discounts;
gift articles;
Loyalty points;
coupons;
gift vouchers; and,
combinations of the above.

All prizes are registered through the Loyalty System, and turnover is entered into the Loyalty Card balance.

Main Technical Characteristics of F-POS 3.65 Rabbit and F-POS G32 Rabbit2
Maximum number of cash registers per Server:	10 groups of 99 cash registers
Network operation mode:	OFF-LINE independent cash register with ON-LINE data exchange with server
Possibility to operate independently without the Server	YES
ON-LINE update of data on the Server:	YES
Uninterrupted continuance of operation in the event of Server down	YES
Buffering of ON-LINE transactions during Server Down period	YES
Automatic reconciliation of data with the Server after it comes back on line	YES
Cash register operating systems for F-POS 3.65	MS-DOS 6.22 IBM PC-DOS 7.0, IBM PC-DOS 2000 MS Windows 95/98
Cash register operating systems for F-POS 3.65	MS Windows 95/98/Me MS Windows NT 4.0 Wks MS Windows 2000 Pro MS Windows XP Pro MS Windows XP Embeded
Supported cash register types:	IBM 4614 ShureONE - all models IBM 4694 ShurePOS - all models from model 001 IBM SurePOS 500/600/700 WINCOR/NIXDORF - all models POSIFLEX PST - from Model 2000 on POSIFLEX PB - from Model 2000 on ICL - depending on the model NCR - depending on the model
Server type	PC-Server (IBM, COMPAQ, DELL) IBM AS/400
Server operating systems	MS Windows 98/Me/2000/Xp (small installations) MS Windows NT 4.0 Server MS Windows 2000/2003 Server Optional: UNIX / LINUX NOVELL 4.xx, 5.xx
Type of data base on the Server	CodeBase Server 6.5 ADS IBM DB/2 & IBM DB/400 Microsoft SQL Server Optional: Informix
Anti-virus protection imbedded in the cash register	YES
Cash register access through standard network programmes	NO
Distance service access to cash registers by the network, model or the Internet	YES, with the aid of a special FILOS-FPCC programme

Main Operating Characteristics of F-POS 3.65 Rabbit and F-POS G32 Rabbit II
Flow speed per cash register	Up to 3 500 items per hour
Types of sales	Retail and Wholesale
Incoming/Outgoing payments by receipts of internal credit/debit cards	YES
Incoming/Outgoing payments - cash registers	YES
Maximum number of articles per price list	6.000.000
Maximum number of diverse price lists	99
Collecting payments for SERVICES	YES
Printing wholesale receipts at the cash registers and at the reception desk	YES
Maximum number of wholesale customes in the data base	100.000.000
Modes of customer card recognition	by code entry magnetic record Bar Code chip card
Number of diverse payment modes	99
Processing turnover on CLUB (Loyalty) Cards with print-out of the current status on the receipt	YES
Number of maximum discounts given per each item on the receipt	3
Akcijske (vezane) prodaje s izračunom za vrijeme očitavanja robe (real-time-detection)	YES
Automatic inclusion of discounts for wholesale customers and retail CLUB (Loyalty) Card holders	YES
Special Sale Actions (tied sales) with calculation during checkout (real-time-detection)	YES
Inbuilt exchange office functions	YES
Possibility of ACD function for paying out cash	YES
Memorising readings (MEMO) in the event that the customer cannot pay on the spot, and the merchandise has to be temporarily set aside in the shopping cart	YES
Printing A4-size receipts at the cash register	YES

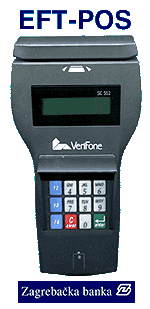

Links with EFT POS units for ON-LINE charges to debit and credit cards	YES
Fiscal mode of operation (fiscal cash registers)	YES
Security provided for individual functions by key and/or ID cards	YES
Electronic Journal showing all operations initiated at the cash register	YES
Paper Journal	YES, if a separate jurnal tape exists

ON-LINE Information Accessible by Way of the Server for F-POS 3.65 Rabbit i F-POS G32 Rabbit II
Total 24-hour takings per each cash register and in total for all the cash registers	YES
Data on receipts	YES
Data on the current financial balance of the cash registers (the tills)	YES
Data on the operators on duty	YES

ON-LINE Communication between the Server and the Cash Registers
Sending out price list changes (additions, amendments, deletions)	YES
Accessibility of data on turnover (receipts)	YES
Automatic updating of Loyalty System data and authorization of modules	YES
Authorizing outgoing payments from the cash register	YES
Updating data on wholesale customers and CLUB Cards	YES

Accessible Data on the Work of Cash Register Operators - OFF-LINE Data
Total turnover per operator - all modes of payment	YES
Statistics on the operators' work:	- clocked in / clocked out - duration of cash register breaks - number of retail receipts issued/cancelled - number of wholesale receipts issued/cancalled - number of interrupted receipts - number of refunds - financial amount of retail receipts (retail takings) - financial amount of wholesale receipts (wholesale takings) - number of items per total receipts - number of cancelled items per all receipts - average operating time per receipt - number of incoming/outgoing payments - financial amount of incoming/outgoing payments

F-POS Operating Security Level - Statistical Data for the Last Five Years
Data loss through hardware failure	0%
Data loss through network failure	0%
Data loss through faulty programme operation	0%
Number of cash register virus infections by way of the network	0
Number of unauthorized operations on cash registers by way of the network - unauthorized operators	0

For more informations please contact: filos@filos.com

To the top

Online ORDERING

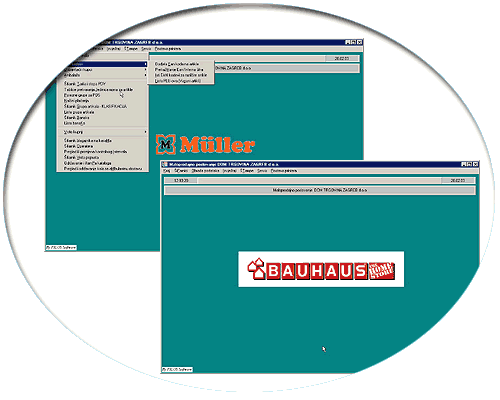

MP.X Store Manager Programme

The MP.X BackOffice Store Management programme has been developed as a high-quality product intended for management of a large number of retail outlets, supermarkets and large shopping centers.

Since an extensive number of locations requires a major IT management system, it is a simple matter to link MP.X with any known (Enterprise Resource Planning) system. In that way, MP.X enables entry into large IT systems without any jagged edges.

Experience to date in the application of the MP.X programme has shown the following important characteristics: robustness and reliability, and what is perhaps the most significant - low costs for its introduction and negligible upkeep outlays, which have related to enhancing the program, and making changes caused by amendment of the Law in the countries in which MP.X is being used.

MP.X can be applied over a wide range of outlets in relation to merchandise turnover, so consequently the data base also has to be wide-ranging, depending on the size of the investment and the requirements of the Client. So it is possible to use all the following data bases: CodeBase, ADS, IBM DB/2, IBM DB/400, MS SQL Server and ORACLE.

Main MP.X G32 Programme Functions
Cash register management (Client/Server communication)	Sending data on articles, customers, prices, special action sales Easy access to receipt data (sales) Cash register reports - financial and statistical ON-LINE review of cash register data (current till balance, articles sold per cash register, and so on...)
Managing special action sales	Picking up data on special action sales from the central system (ERP) Creating special action sales locally at the retail outlet Statistical reports on special action sale implementation Processing results of special action sales and sending them to the central system
Registering merchandise deliveries, calculations, monitoring merchandise flow	Picking up data on debits from the central system (ERP) Registering deliveries of merchandise from the central warehouse Registering deliveries of merchandise distributed directly by the Supplier Warehouse card and merchandise card records
Commercial	Commercial reports - merchandise/financial monitoring Over 50 additional reports on financial results, sales per article, sales per group Top-of-the-charts articles (sold most - sold least) Export of all reports in MS EXCEL tables Reports printed in color (graphs)
Statutory (legal) reports	All reports prescribed by the lawmakers of the country in which the program is being used are built into the programme Reports can be exported in the format set by the lawmakers (fiscal acts in individual countries) Tax reports pursuant to the law of the country in which MP.X is being used
Printing labels	Printing shelf labels with all data on the article (including data that has to be shown by law) Printing the label on the article Printing import (customs) declarations Capability of using external design programmes ("Nice Label", "Design Pro" and the like) Unlimited number of label types; linking articles with a particular label printed during merchandise delivery registration
Communication with the central ERP system	Support to the "chain-management" operations system Automatic link with the central (ERP) system Creating synthetics and exporting synthetics to the central system as required Sending all analytical data for later processing (OLAP) Links with almost all ERP solutions: Invensys BaaN, PSE, FIDIBUS, SIRENA, LAUS, TRS.... Communication with the central system can be selected per modem "DIAL-UP on demand" links, POP3-Servera (e-mail), Internet VPN, and direct links with the central system
Links with book-keeping applications	Links with book-keeping applications, direct registering of merchandising and financial events with rules for analytical and/or synthetic booking as specified by the User
Control of inflow of funds resulting from bank EFT POS machines	F-POS cash registers are linked with bank EFT POS machines, enabling efficient monitoring of transactions and of the inflow of funds arising from transactions All transactions are stored in a data base with a high degree of encryption to ensure the confidentiality of data? Authorized persons can obtain reports on all transactions and/or on each transaction separately
Commissionary sales	With the aid of the MP.X programme, it is possible to sell merchandise accepted for commissionary sale at the retail outlet All reports required for the registration of merchandise accepted and merchandise sold under commissionary conditions are included in the programme
Monitoring packaging flow	Complete support for monitoring packaging flow ("financial / stocks", associated packaging: for example, bottles, cases...)
Norms	Specific documents connected with processing linked to norms A priori mode: for example, meat splitting A posteriori mode: for example: restaurants
Stocktaking processing	Stock taking data can be entered by hand or by using manual scanners

Numerous other functions which are not specified above are a component part of the programme and consist of sub-functions of the main and standard functions.

Platform:

Supported operating systems for M.P.X: MS Windows 98/ME/2000 PRO/XP PRO
Supported database servers for major shopping centers: Novell NetWare 4/5/6, MS Windows 2000/2003 Server, IBM AS/400 Server, Unix-based Servers
Standard PC configurations are used for smaller installations.

Application:

Number of licensed companies: more than 20
Number of programmes installed: more than 300
